Description:
Testing final sheet after lamination, no need to test individual card after sheet punching. Testing Pre-laminated Inlay

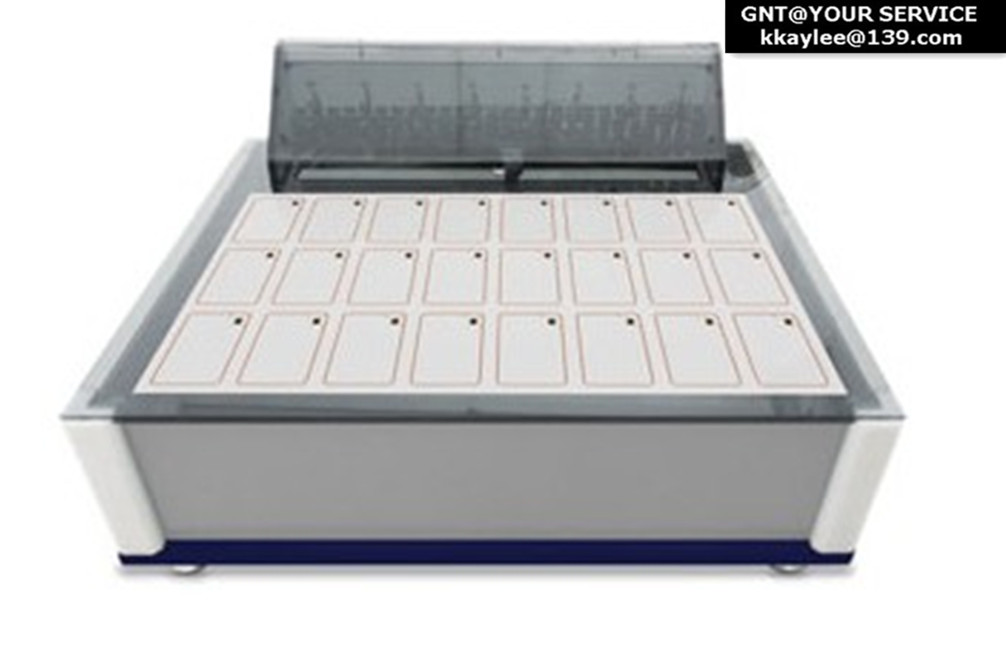

This multi-function Inlay Tester is specially designed for contactless card Inlay. producer, which can automatically test the function for ISO14443-TYPE A, ISO14443-TYPE B, ISO15693 transponders during the process of Inlay production.
Saving H.R cost & improving your factory capacity is the biggest features. This advanced device will end the old operation way! As usually, operator has to test the transponder one by one manually.
It¡¯s the necessary tools for every Prelam Inlay and card producer!
Specification:
²RS232 interface:(option)
- Connected PC, for visualization of the operation
- Upgrade the program
Support Cards:
- ISO14443-Type A: Mifare® Std 1k, Mifare® Std 4k, Ultralight, Mifare® DESFire, etc.
- ISO14443-Type B:AT88RF020, AT88RF080, ST®SRIX4K, SR176, TRH1064
- ISO15693 : ICODE SLI ICS30, ICODE SLI SL2 ICS20, TI-RFid TM
- SRF55V02P, SRF55V10P, EPC, etc.
- Other customized chip likes China 2nd Generation ID card, etc
Intstructions for card detection:
|
Card Module |
TYPE I
(green light) |
TYPE II
(yellow light) |
Red light |
Status |
|
ISO14443-TYPEA |
¡Ì |
|
|
OK |
|
ISO14443-TYPEA |
¡Ì |
|
¡Ì |
NG |
|
ISO14443-TYPEB |
|
¡Ì |
|
OK |
|
ISO14443-TYPEB |
|
¡Ì |
¡Ì |
NG |
|
ISO15693 |
¡Ì |
¡Ì |
|
OK |
|
ISO15693 |
¡Ì |
¡Ì |
¡Ì |
NG |
Note:¡Ì: indicator light on or buzzer call
OK: qualified card
NG: unqualified card
|
